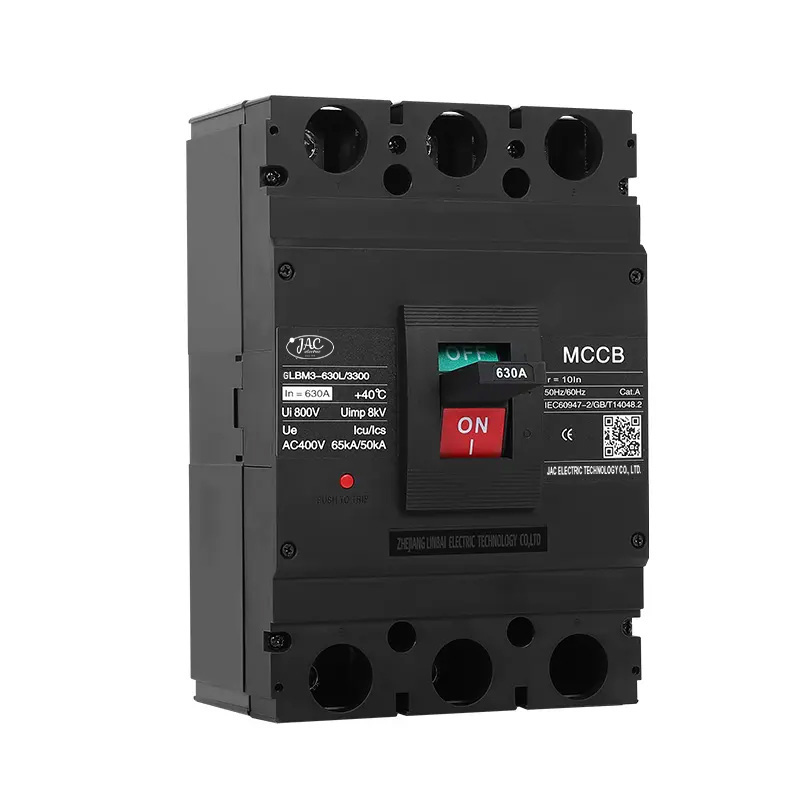

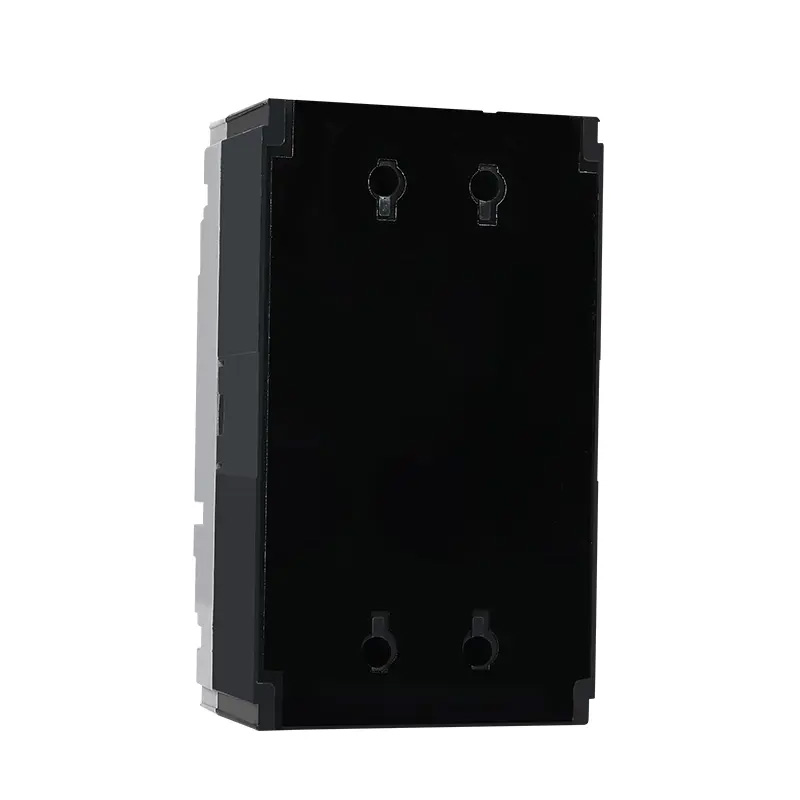

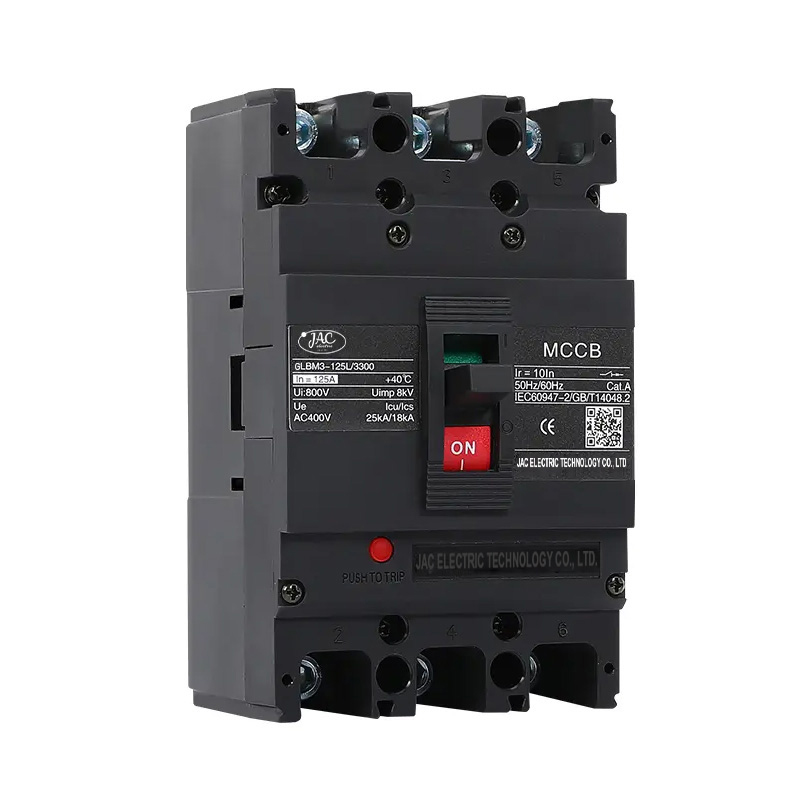

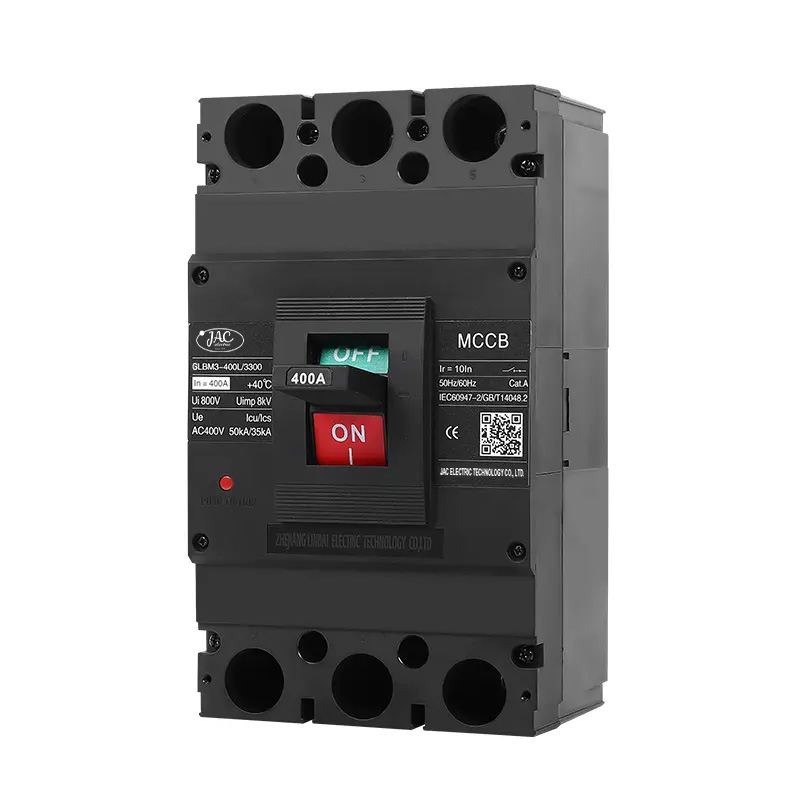

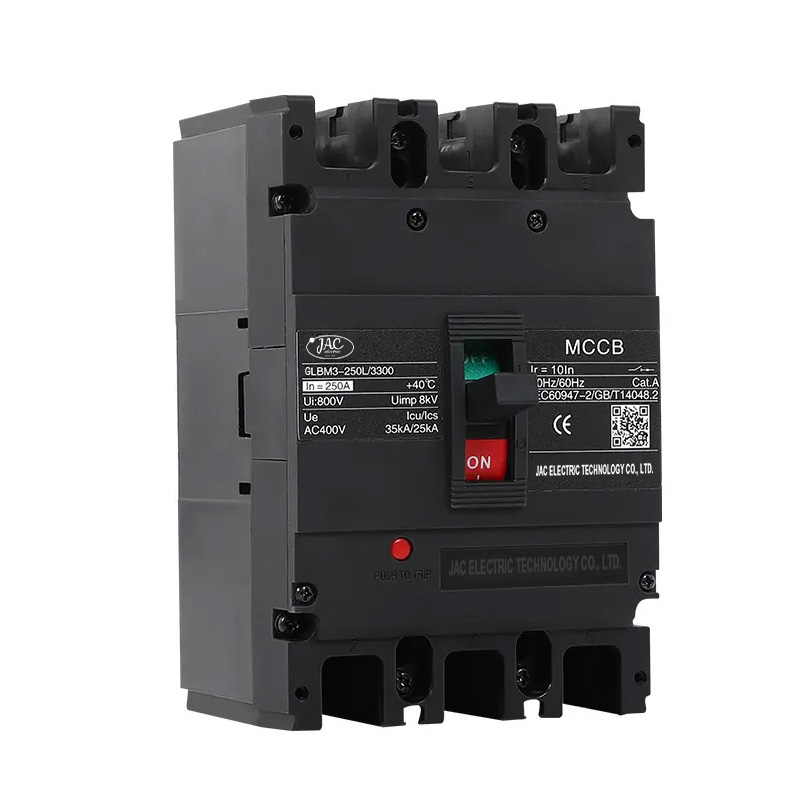

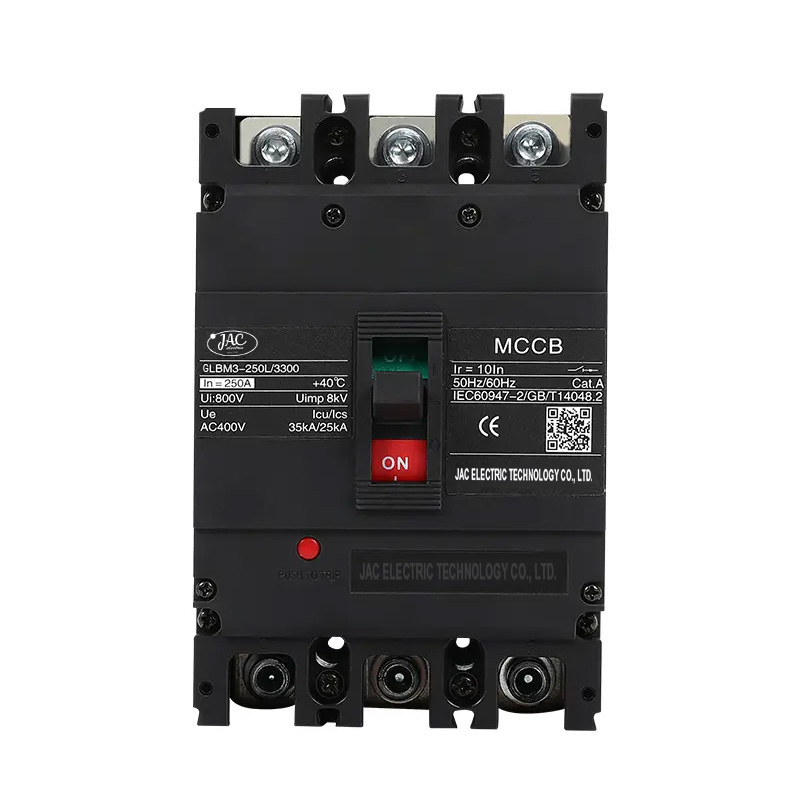

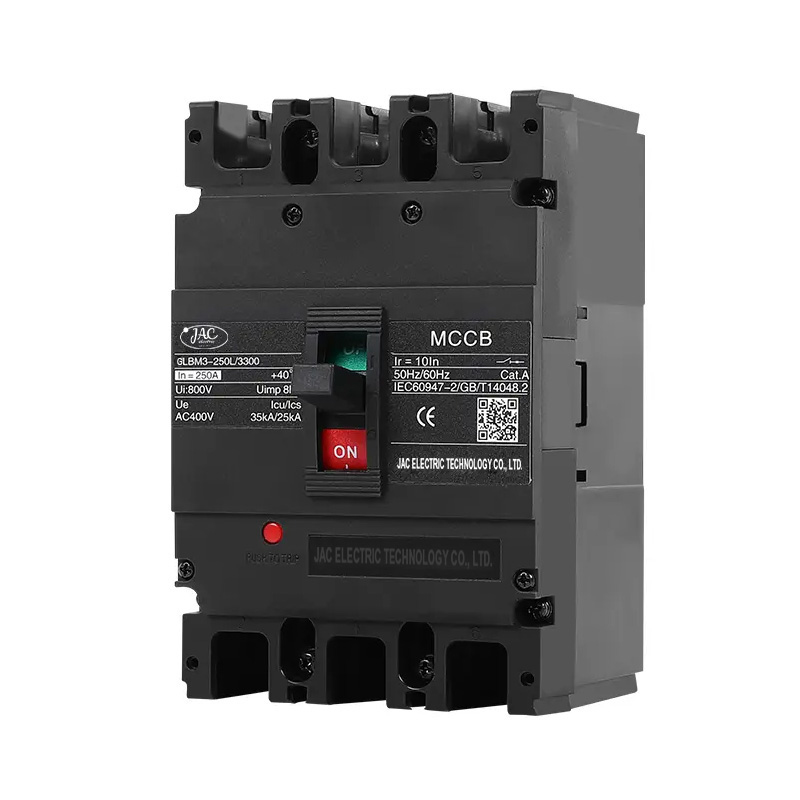

GLBM3 800V 1000VAC Molded Case Circuit Breaker
Short Description:
GLBM3 series plastic case circuit breaker(hereinafter referred to as circuit breaker) is one of the new circuit breakers developed by our company with internationaladvanced design and manufacturing technology.Its rated insulation voltage is 1000V, which is suitable for the circuitwith ac 50Hz, rated working voltage of 1000V and below, rated working current of 630A, for infrequent conversion andinfrequent starting of the motor.Circuit breaker with overload, short circuit, protection function, can protect the line,power equipment from damage.
Detail
THE PRODUCT APPLICATION
GLBM3 series plastic case circuit breaker(hereinafter referred to as circuit breaker) is one of the new circuit breakers developed by our company with internationaladvanced design and manufacturing technology.Its rated insulation voltage is 1000V, which is suitable for the circuitwith ac 50Hz, rated working voltage of 1000V and below, rated working current of 630A, for infrequent conversion andinfrequent starting of the motor.Circuit breaker with overload, short circuit, protection function, can protect the line,power equipment from damage.
The circuit breaker has the characteristicsof small volume, high breaking, short arc (some specifications zero arc), anti- vibration and so on.
The circuit breaker can be installedvertically (i.e. vertically) or horizontally (i.e. horizontally).
This circuit breaker can not be reversedinto the line, that is, only 1, 3, 5 can be connected to the power line, 2, 4,6 to the load line.
This circuit breaker is suitable forisolation (but different from isolation switch).
CONFORm TO THE STANDARD
IEC 60947-1 and GB/T 14048.1 low-voltageswitchgear and control equipment – part 1 general rules
IEC 60947-2 and GB/T 14048.2 low-voltageswitchgear and control equipment – part 2 circuit breakers
IEC 60947-4-1 and GB/T 14048.4 low-voltageswitchgear and control equipment – part 4 contactors and motor starters
IEC 60947-5-1 and GB/T 14048.5 low-voltageswitchgear and control equipment – part 5 electromechanical control circuit
appliances
CONDITIONS OF USE
Altitude 2000m and below;
Ambient medium temperature is not higherthan +40℃ and not lower than -5℃ ;
Ability to withstand the influence of moistair;
Ability to withstand the impact of saltfog, oil fog;
Ability to withstand the impact of mold;
The maximum inclination was ±22.5° .
Where there is no explosion hazard in themedium and the medium is not enough to corrode the metal and destroy the
insulation of the gas and conductive dust;
Wherethere is no rain or snow
Technical parameter
| GLBM3 | Enterprise product code |
| 250 | Bracket grade current optional code: 250/400/630 |
| HU | High voltage class |
| p | Operation mode optional code: Co code: direct operation Z turn handle to operate P electric operation |
| 3 | Number of poles: 3 tripoles |
| 3 | Optional code of tripper mode: Only 2.electromagnetic trip 3.Thermal action + electromagnetic trip |
| 00 | Internal attachment code |
| TH | Place and environment code: No code normal environment TH tropical type |
| Model | GLBM3-250HU | ||
| Rated current | A | 63/80/100/125/140 160/180/200/225/250 | |
| The number of | 3 | ||
| Rated working voltageUe AC 50-60Hz | V | 800 | |
| Rated insulation voltage Ui | V | 1000 | |
| Rated shock withstand Voltage Uimp | kV | 8 | |
| Power frequency Withstand voltage(1min) | V | 3500 | |
| Rated ultimate short- Circuit breaking capacity Icu | kA | 36 | |
| Rated operating short- Circuit breaking capacity Ics | kA | 25 | |
| Mechanical life | time | 10000 | |
| Electric life | AC 800V | time | 2000 |
| AC 1000V | time | 1000 | |
| Basic size | mm | 107-165*112 | |
| Arcing distance | mm | ≥100 | |
| Reference ambient Temperature | ℃ | 40 | |
| Isolation function | ● | ||
| Instantaneous trip | 5Inor10In | ||
