Ground-free Electric Vehicle Charger
Short Description:
Cold-rolled steel electrostatic spraying, the shell is sturdy, pressure-resistant, and impact-resistant. It supports card swiping and code scanning for charging. The touch screen is more suitable for user operation of site building and operation, indoor and outdoor parking lots.The best choice for shopping malls. The charging gun is stylish and ergonomic, with a waterproof level of IP54, suitable for outdoor installation.
Detail
Product Introduction
Cold-rolled steel + electrostatic spraying, the shell is sturdy, pressure-resistant, and impact-resistant. It supports card swiping and code scanning for charging. The touch screen is more suitable for user operation of site building and operation, indoor and outdoor parking lots.The best choice for shopping malls. The charging gun is stylish and ergonomic, with a waterproof level of IP54, suitable for outdoor installation.
Output port：Single gun
Rated power：3.5kw/7kw
Operating voltage：80V~250V
Rated current：8A/10A/13A/16A/32A
Class of protection：IP55/IP66
Operating temperature：-30°C~+55°C
Working altitude：<2000m
Conductive pin：Copper alloy plated with silver
Product Benefits
Beautiful and practical
Superb and concise design, supports card identification with screen display (optional)
Stablize
The protection level of the machine body reaches the IP54 industry standard, and it can be used normally outdoors without fear of rain and dust
Dependable
The product is suitable for the harsh environment of the board end. The high-strength engineering plastic is suitable for ice and snow or scorching heat. The core adopts industrial-grade components, which is durable and has a long life.
Energy saving
The power of the special machine is small, and the energy saving efficiency is more than 2 times higher than the same level products on the market.
Product Parameters
| Detailed specifications | Product model | GLBACEV-3.5 |
| Usage scenarios | Home/Private/Commercial | |
| Appearance structure | Optional accessories | 80*215*45 |
| Installation method | Wall mount/column | |
| Cabling method | Lower incoming line/lower outgoing line | |
| Cable length | 5mStandard configuration(3.5m-10mOptional/customizable) | |
| Electrical indicators | Input voltage | 80V-250V |
| Input frequency | 50±3Hz | |
| Rated power | 1.7kw/2.2kw/2.8kw/3.5kw/7kw | |
| Measuring accuracy | Level 1 | |
| Output voltage | 80V-250V | |
| Output current | 8A/10A/13A/16A/32A | |
| Functional design | Product features | Plastic shell, 5M gun cable, no screen |
| Security design | Safety standards | GB/T 18487.1-2015 |
| Protection design | Overvoltage protection, undervoltage protection, short circuit protection, overload protection, grounding protection, overtemperature protection, low temperature protection, lightning protection, leakage protection | |
| Environmental indicators | Applicable environment | Indoor/Outdoor |
| Operating temperature | -30°C~+55°C | |
| Operating altitude | <2000m | |
| Communicat -ion interface | Support 4G, APP, and mini-programs | |
| Protection grade | IP55/IP66 | |
| Cooling method | Natural air cooling | |
| MTBF | 100,000小时 | |
| Special protection | UV protection design | |
| Optional accessories | Install components | Ground-free electric vehicle charger （National/European/American standard gun head） |

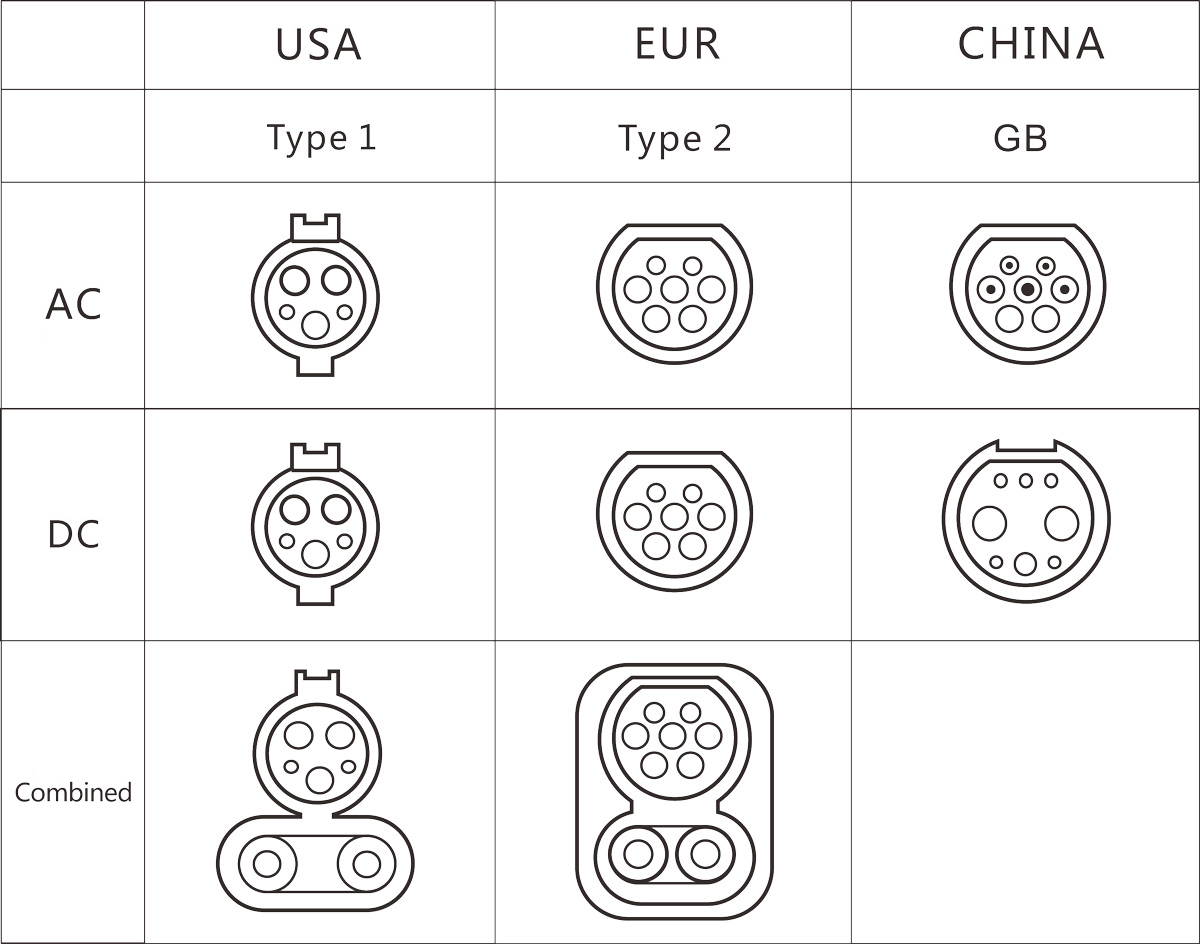

Vehicle Charging Gun

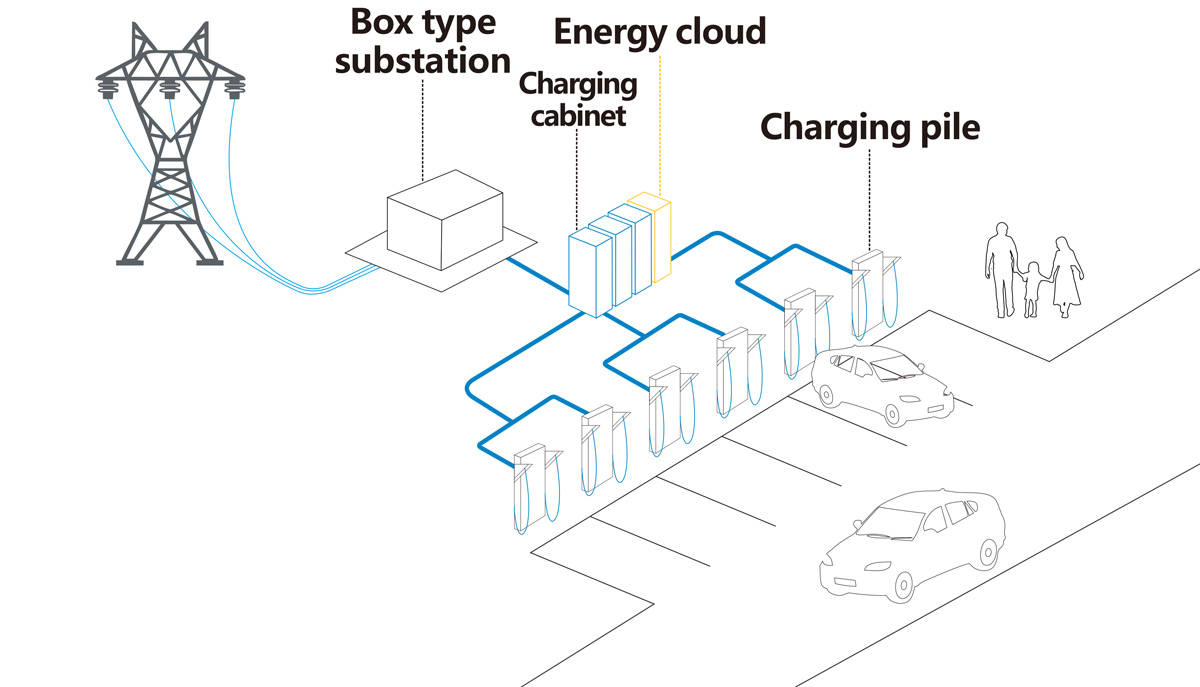

Use the Scene Graph
