GL47-125 Miniature Circuit Breaker
Short Description:
GL47-125 is such features as delicate appearance, light weight, excellent andreliable performance, high breaking capacity, rapid tripping and mounted byrail. Its enclosure and components adopts high fire-retarding andshock-resistance plastic of long durability. It mainly servesfor protecting thecircuits of AC 50Hz, 230V of single pole, 400V of two poles or three or four polesfrom overload or short-circuit, and also for unfrequent making and breakingelectrical apparatus and lighting circuit.It conforms with the standards ofIEC60947-2.
Detail
1. Application
GL47-125 is such features as delicate appearance, light weight, excellent andreliable performance, high breaking capacity, rapid tripping and mounted byrail. Its enclosure and components adopts high fire-retarding andshock-resistance plastic of long durability. It mainly servesfor protecting thecircuits of AC 50Hz, 230V of single pole, 400V of two poles or three or four polesfrom overload or short-circuit, and also for unfrequent making and breakingelectrical apparatus and lighting circuit.It conforms with the standards ofIEC60947-2.
2. MainTechnical Parameter
| Type | GL47-125 | |
| Pole | 1P | 2P,3P,4P |
| Rated current (A) | 63,80,100,125 | |
| Rated voltage (V) | 230 | 400 |
| Ambient temperature | -5oC~+40oC | |
| Type of instantaneous release | C,D | |
| Rated short circuit breaking capacity Icn(kA) | 6 | |
3. Theover-current protection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | NOte |
| 40±2oC | Cold position | 1.05In(In≤63A) | t≤1h | Non-release | - |
| Cold position | 1.05In (In[63A) | t≤2h | Non-release | - | |
| Carried out immedi-ately after previous test | 1.30In(In≤63A) | t < 1h | Release | Current smoothlyrises to specified value within 5s | |
| 1.30In (In>63A) | t < 2h | Release | |||
| -5~+40oC | Cold position | 8.00In | t≤0.2s | Non-release | - |
| Cold position | 12.00In | t< 0.2s | Non-release | - |

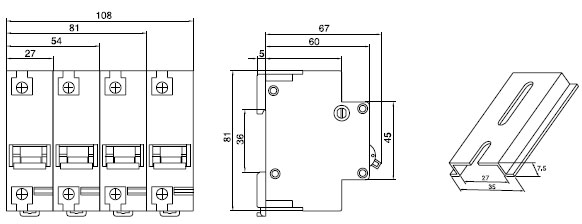

4.Applicable conducting wire
| Rated current(A) | Nominal cross section of wire mm2 |
| 63A | 16 |
| 80A | 25 |
| 100A | 35 |
