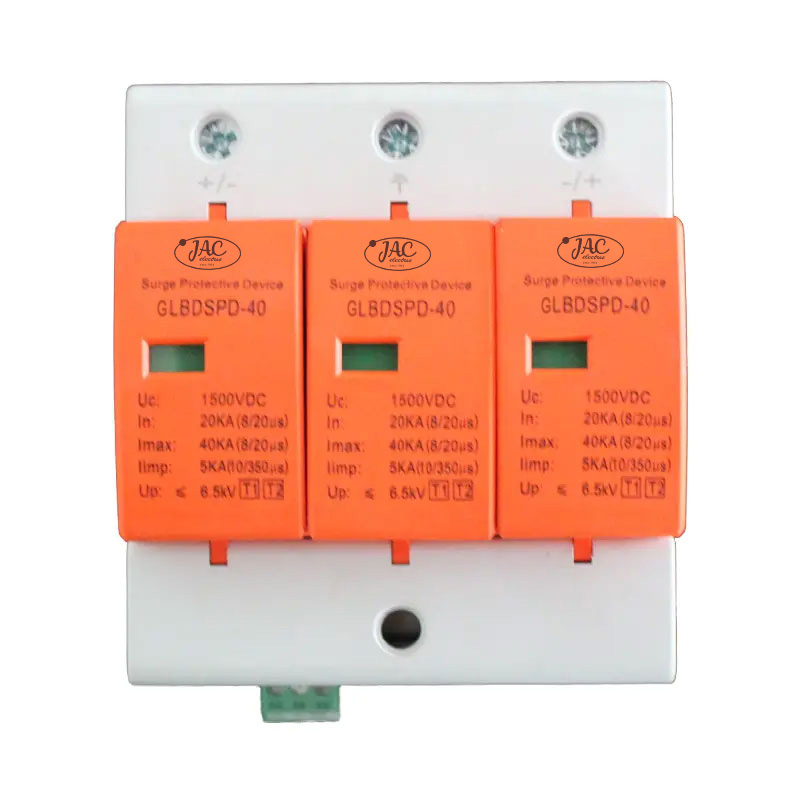

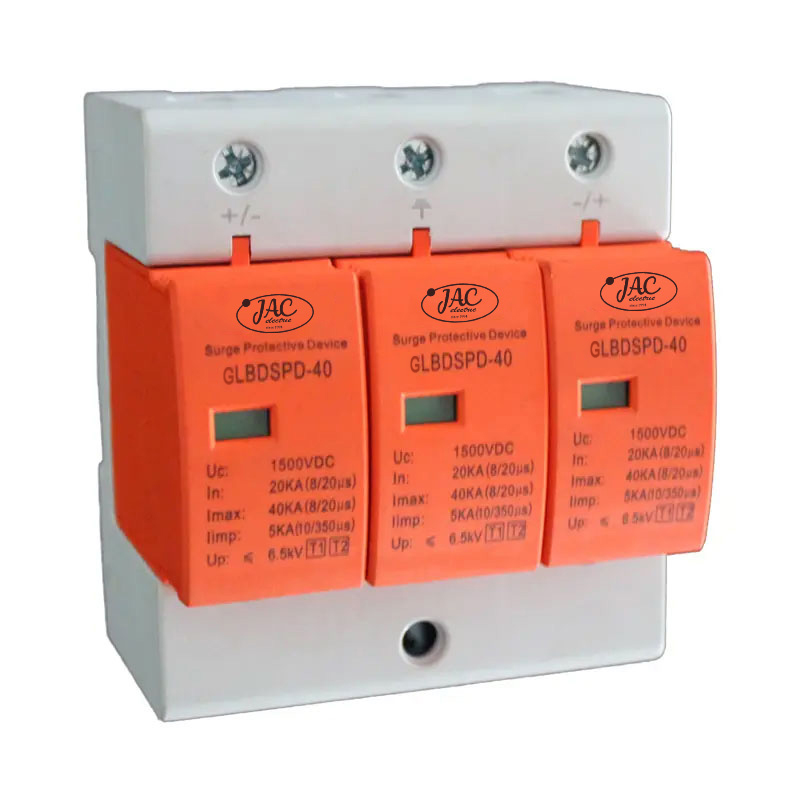

Solar PV GLBDSPD-40 1500VDC (T1+T2) PV Surge Protective Device
Short Description:
Solar PV GLBDSPD-40 1500VDC (T1 T2) PV surge protective device This DC surge protective device is protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage. Widely used in photovoltanic comber box, power inverter, DC distribution cabinet etc. It has advantages of large discharge current, fast respond time, low residual voltage.
Detail
Product Introduction
Solar PV GLBDSPD-40 1500VDC (T1+T2) PV surge protective device This DC surge protective device is protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage. Widely used in photovoltanic comber box, power inverter, DC distribution cabinet etc. It has advantages of large discharge current, fast respond time, low residual voltage.
Features
1. Plug-in type surge protective device
2. Visible window, green means normal, red means fault
3. Double protection of fusing and over-current
4. Remote signal interface that realize remote control
Technical Parameter
Model | GLBDSPD-40 （T1+T2） |
Maximum Continuous Operating Voltage Uc | 1500V DC |
Nominal Discharge Current (8/20µs) | 20KA |
Maximum Discharge Current(8/20µs) | 40KA |
Iimp | 5KA |
Poles | 3P |
Voltage Protection Level Up | ≤6.5KV |
Response Time tA | ≤25ns |
Indication Method | Visible window,Green=normal, Red=fault |
Min. sectional area of incoming wire L/N | 4mm2 |
Min. sectional area of incoming ground wire PE | 6mm2 |

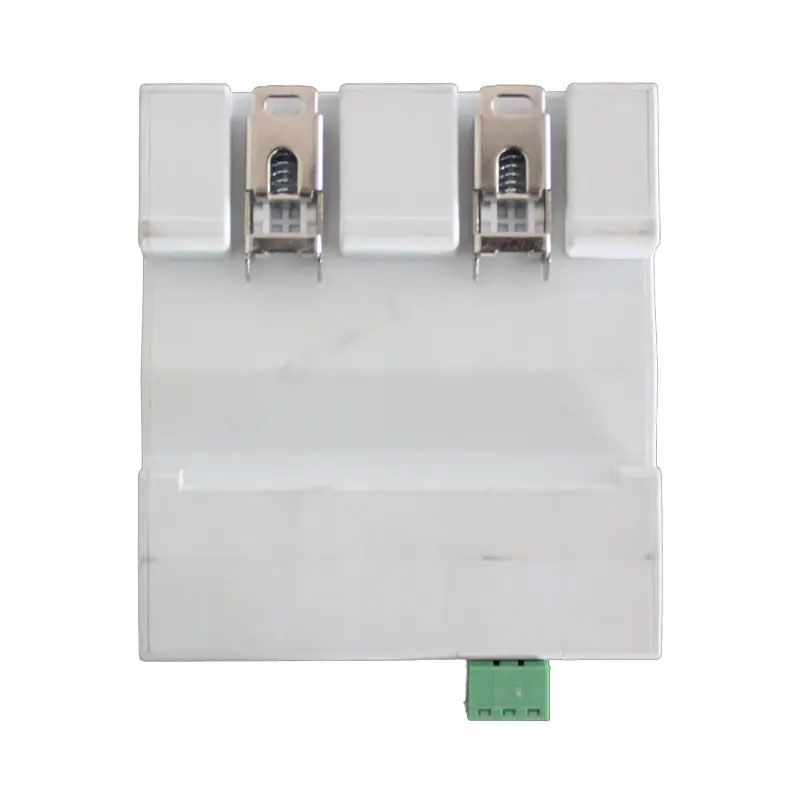

Method of Installation | 35mm Din Rail |
Material of Shell | PBT |
Protection Level of Outer Shell | IP20 |
Working Temprature | –25 -+70℃ |
